Door cylinder

The security cylinder lock is used to lock and unlock the vault or door locking mechanism with a key.

• Protects the door against unauthorized entry, resistant to: drilling, lock-picking, SG system, etc.
• Duplicate key for the security cylinder can be made:
  only upon presentation of the security card,
  for cylinders with high and extra-high security, the duplicate key can only be made in ADLO centers.
• In case of loss or theft of a key, the cylinder should be replaced or re-coded as soon as possible.

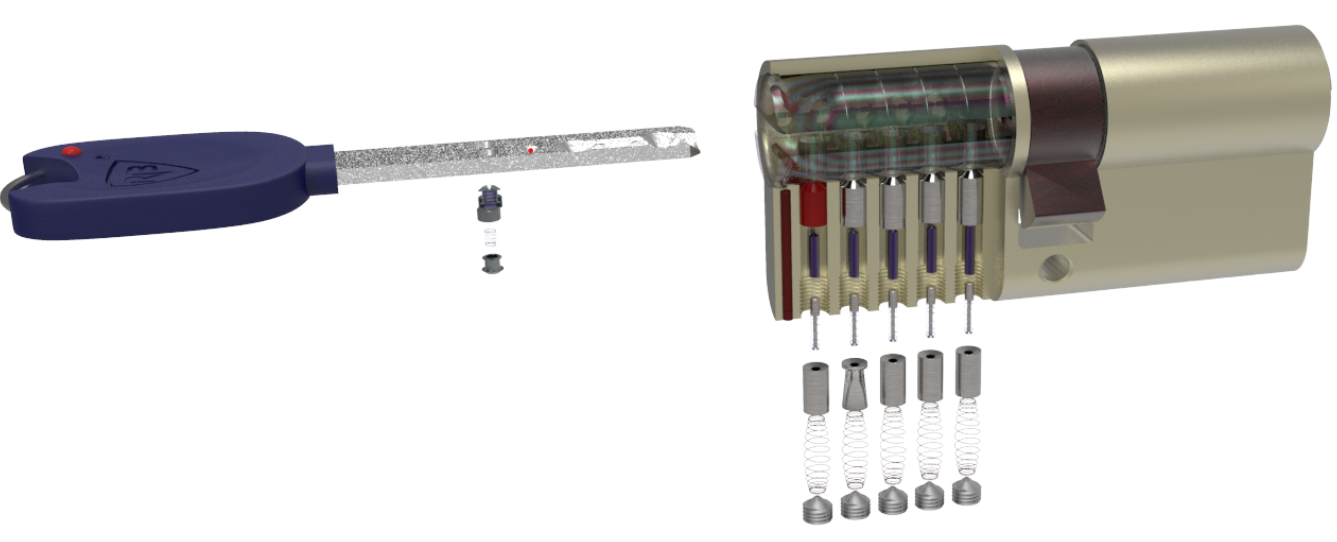

Cross-section of the security cylinder:

Choose from the following types of cylinders:

Cylinder with key for Extra High Security
RB Locxis ADLO  - protected ADLO profile
10 telescopic pins,
Double telescopic pins in the key,
Unique patent protection

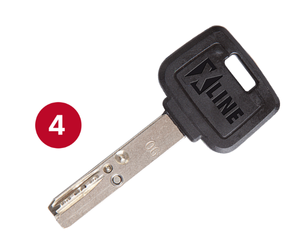

Cylinder with key for High Security
RESIST XLINE
10 telescopic pins,
Active pin in the key

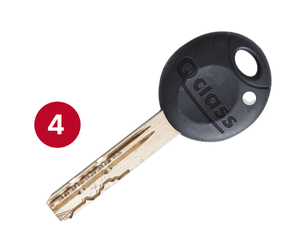

Cylinder with key for High Security
RESIST Qclass
10 telescopic pins,
Labyrinth in the key

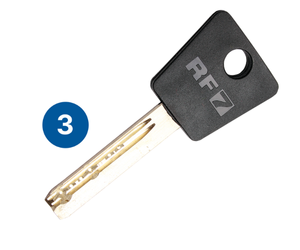

Cylinder with key for Basic Security
RESIST RF7
7 standard pins

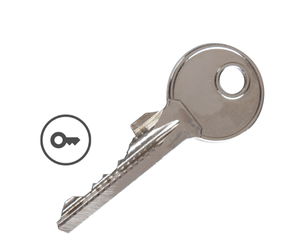

Cylinder with key for Simple Security
SV Construction Cylinder
temporary construction cylinder,
no security class

Options and cylinder modifications:

• Emergency: the pass-through cylinder allows insertion and turning of a key from both sides simultaneously, regardless of whether a key is inserted on the opposite side.
• Thumbturn on the inside of the cylinder – a fixed replacement for the key.
• Re-coding the cylinder in case one of the keys is lost.
• Unifying several cylinders to operate with a single key.
• Master Key System (SGH): general and master key system.
