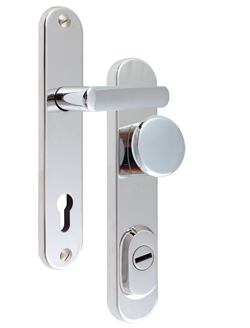

Rostex R1, round, chrome - stainless, handle-knob

Catalogue number 2120-0004
Rostex R1, round, chrome - stainless, handle-knob
  • Security class 3
Price without VAT: - SkPrice with VAT: - Sk
A quality product from a traditional Czech producer Rostex Vyškov s.r.o.

Usage:
Rostex security fitting is intended to protect the cylinder and locking mechanism of ADLO security door from outside unprotected space.
The fitting also enables to manipulate the door easily and without problems during its opening and closing.
Inseparable part of the fitting is a handle on the inner (protected) side, which controls the latch bolt on the mortise lock.

Description:
Security fitting Rostex is composed of the outer and inner fitting plates that are screwed together through pre-drilled holes in the door.
When the fitting is affixed to ADLO security door, it is impossible to deconstruct or steel it from the outside.
Quality steel pressing with welded connecting screws is the main security component of the outer plate of the security fitting Rostex.

Cylinder cover on the outside (unprotected side):
A security fitting Rostex in version R1 is delivered with a full cylinder coverage that enhances the security of the fitting and of the cylinder.

Security:
Security fittings are tested and certified in security class 3 - a degree of high protection.
The appraisal and certification of products is provided by an independent accredited testing laboratory. Rostex security fitting complies with the requirement of the norm ČSN EN 1906 for usage in break-in resistant doors and with ČSN P EN 1627 for resistance against forced entry.
The security fitting is certified according to NBU scale of secrecy to level “secret”, which confirms its capacity to serve as a mechanical protective tool.
A security fitting marked R1 has a security plate in the place of key insertion, which reinforces the fitting security considerably. The plate is protecting the cylinder from being drilled out or broken by tools.

Limitation:
The basic type of fitting can be installed to a door of 40-45 mm depth. Fitting spacing (the distance between the handle axis and cylinder tambour axis) is 90 mm.
Longer bolts are available on special order for doors that are deeper, doors in different designs such as profile, panel design; or for TERMO door.
The security fitting marked as R1 has a security plate in the place of key insertion therefore it is inevitable to use a cylinder with a longer key shank.

Installation:
it is possible to buy the installation of fitting to your door separately (cat.No.111).
You may install it yourself if you have average experience with DIY.
 The fitting is universal; adaptation to the right and left door is really simple.
In case of need, effortless and easy exchange for other type of fitting from the line of security fittings   Rostex is possible (the only condition: same dimensions and holes spacing for screws).

Availability:
On stock in stockrooms of all ADLO shops.

Hardware for security fitting Rostex (included in the packing):
-Outer and inner fitting plate.
-Fitting gripping from the outer side is a knob and a handle from the inner side.
-Bolts, screws, lining for the inner and outer plate, connecting square end of the handle, reverse handle mechanism, handle grip screw (worm), and L-keys needed for the installation.
- Installation and service manual, drilling templates that will make the measuring and drilling work easier.

Good advice:
A fitting should be ranked in the same security class as the door or higher. The end result – fitting installed on ADLO security door – will make even a demanding customer happy.
